Products
01

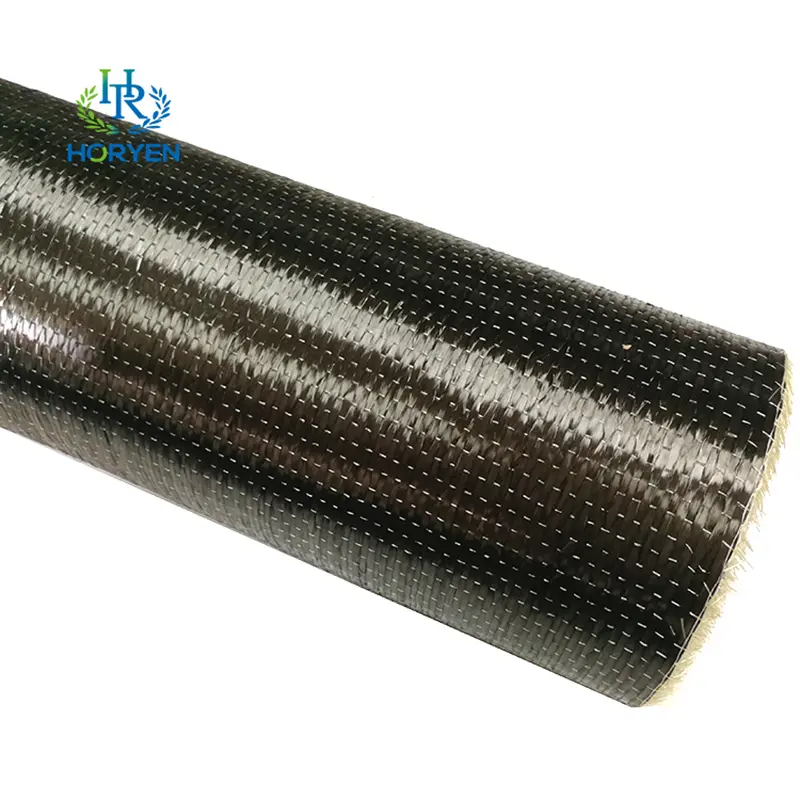

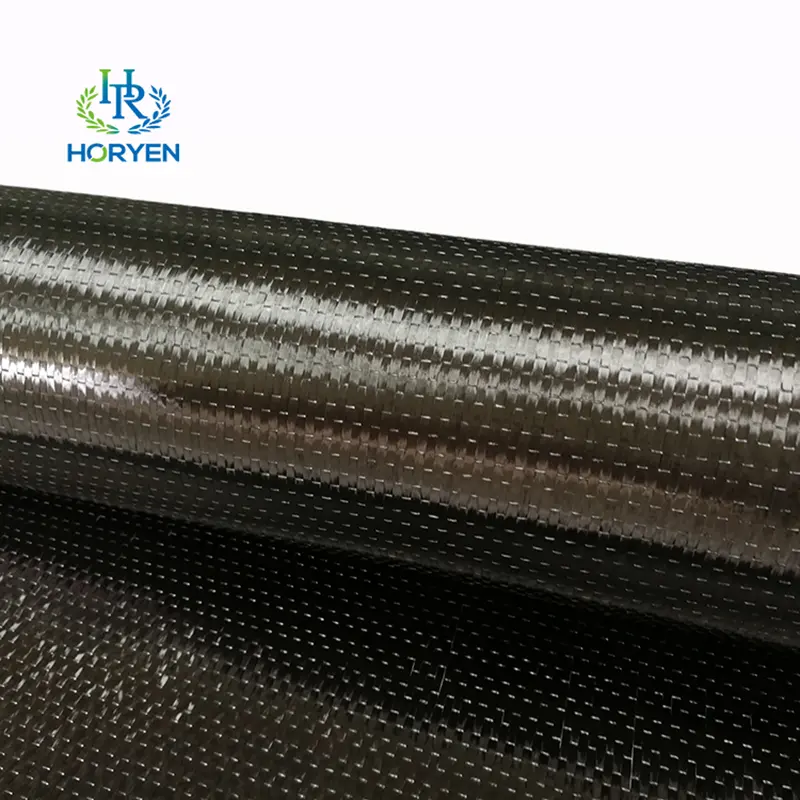

12K T700 Reinforced UD Carbon Fiber Cloth For Building
Product Feature
Excellent environmental resistance performance
Corrosion resistance:
1. Resistant to acid and alkali, salt spray, and ultraviolet radiation (requiring surface coating protection), suitable for reinforcing marine engineering and chemical plants.
2. No need for regular rust prevention maintenance like steel, low lifecycle cost.
High temperature resistance:
1. Resistant to high temperatures above 2000℃ in an inert environment（such as spacecraft thermal protection layer substrates）.
2. Combined with resin: Ordinary epoxy resin based carbon fiber cloth has a temperature resistance of about 150-200℃, and can be exended to over 300℃ when combined with high-temperature resistant resin.
Corrosion resistance:
1. Resistant to acid and alkali, salt spray, and ultraviolet radiation (requiring surface coating protection), suitable for reinforcing marine engineering and chemical plants.
2. No need for regular rust prevention maintenance like steel, low lifecycle cost.
High temperature resistance:
1. Resistant to high temperatures above 2000℃ in an inert environment（such as spacecraft thermal protection layer substrates）.
2. Combined with resin: Ordinary epoxy resin based carbon fiber cloth has a temperature resistance of about 150-200℃, and can be exended to over 300℃ when combined with high-temperature resistant resin.
|
Product Information |
|
|
Product Type |
UD Carbon Fiber Fabric |
|
Material |
100% carbon fiber |
|
Fabric Type |
Cloth |
|
Warp |
12k |
|
FAW |
200-300g/m2 or customized |
|
Thickness |
0.111~0.167mm |
|
Color |
Black |
|
Width |
100cm or customized |
More Choice
Application Field

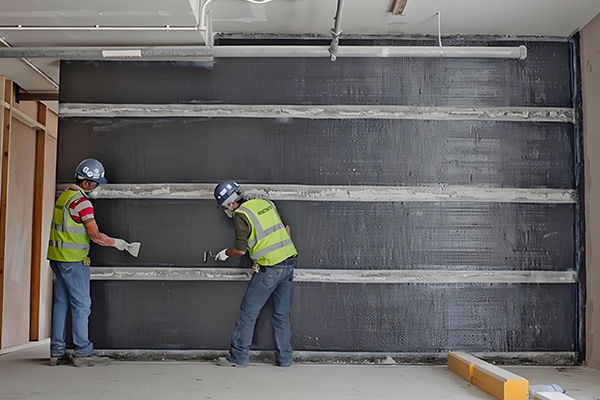

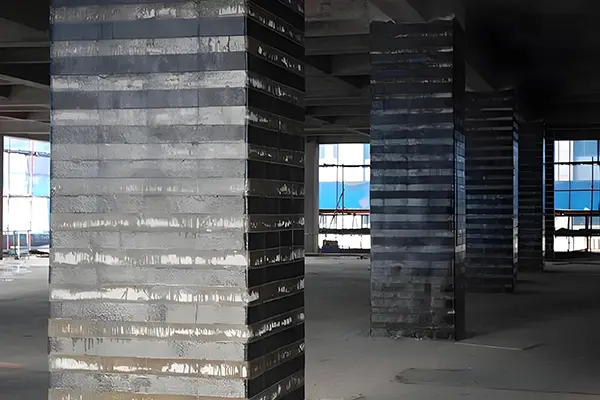

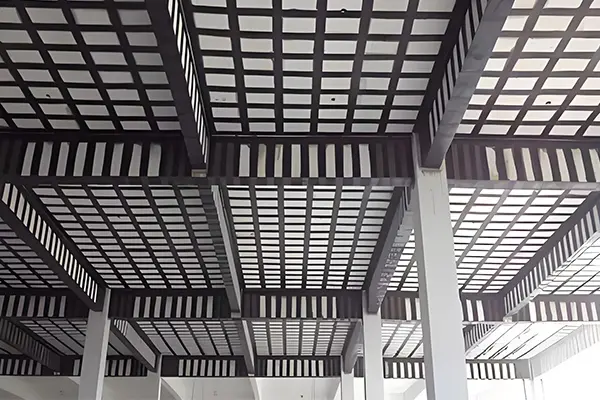

● Seismic retrofitting: For earthquake prone areas, UD carbon fiber cloth can enhance the seismic resistance of buildings and reduce the risk of damage caused by earthquakes.
● Weight reduction design: In some projects that require reducing the weight of buildings, the application of UD carbon fiber cloth can effectively reduce the overall weight of buildings and improve design flexibility without affecting strength.
● Weight reduction design: In some projects that require reducing the weight of buildings, the application of UD carbon fiber cloth can effectively reduce the overall weight of buildings and improve design flexibility without affecting strength.
● Corrosion resistance: Carbon fiber materials have excellent corrosion resistance and are suitable for use in building structures in special environments, including coastal areas, chemical plants, and other places with strict corrosion requirements.
● Decoration and Aesthetics: In addition to structural reinforcement, UD carbon fiber cloth can also be used as a building decoration material, providing a sense of modernity and technology, and adding beauty to the appearance of buildings.
Why Choose Us?
Buyer Review
Our Factory
Packing & Transportation
FAQ
Product Parameter
|
Technical parameters of carbon fiber unidirectional fabric |
||||
|
Specification |
Ⅰ |
Ⅱ |
||
|
Surface density |
200 g/ m2 |
300 g/ m2 |
200 g/ m2 |
300 g/ m2 |
|
Theoretical thickness |
0.111 mm |
0.167 mm |
0.111 mm |
0.167 mm |
|
Tensile strength |
≥3400 MPa |
≥3400 MPa |
≥3000 MPa |
≥3000 MPa |
|
Elastic modulus |
≥240 GPa |
≥240 GPa |
≥210 GPa |
≥210 GPa |
|
Breaking elongation |
≥1.7% |
≥1.7% |
≥1.5% |
≥1.5% |
