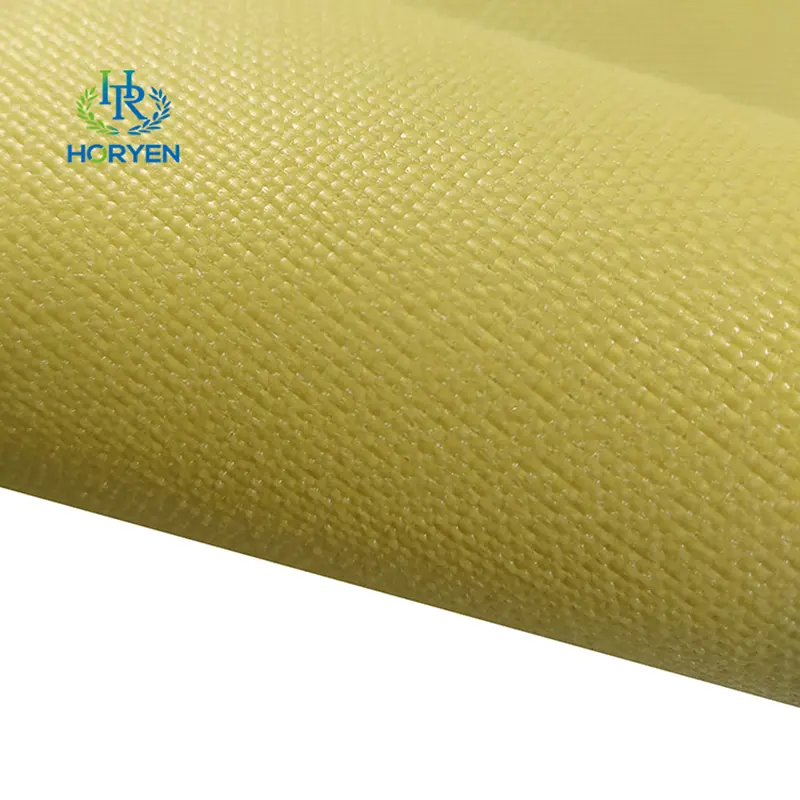

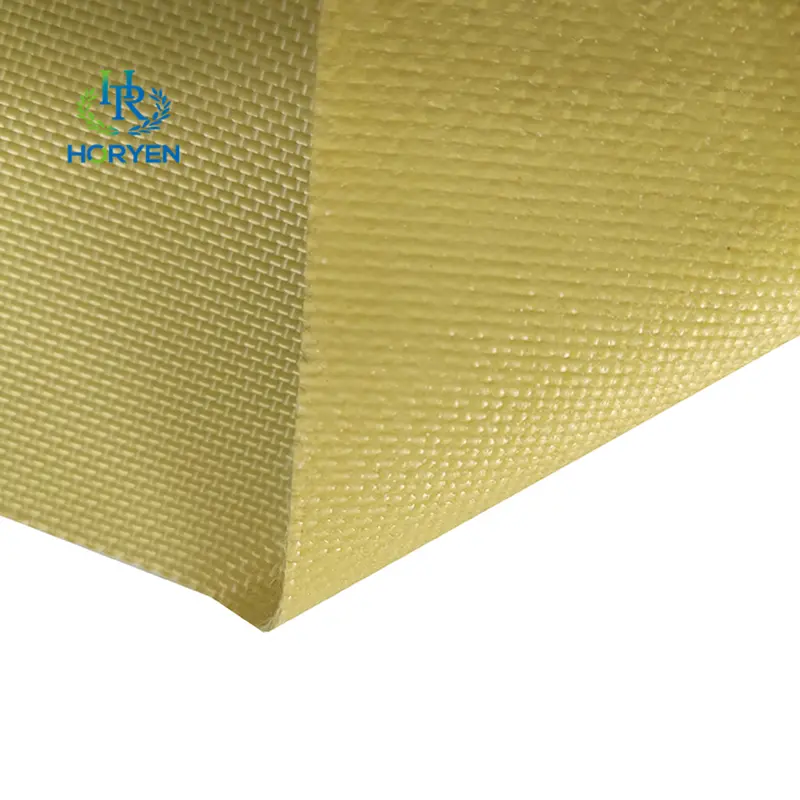

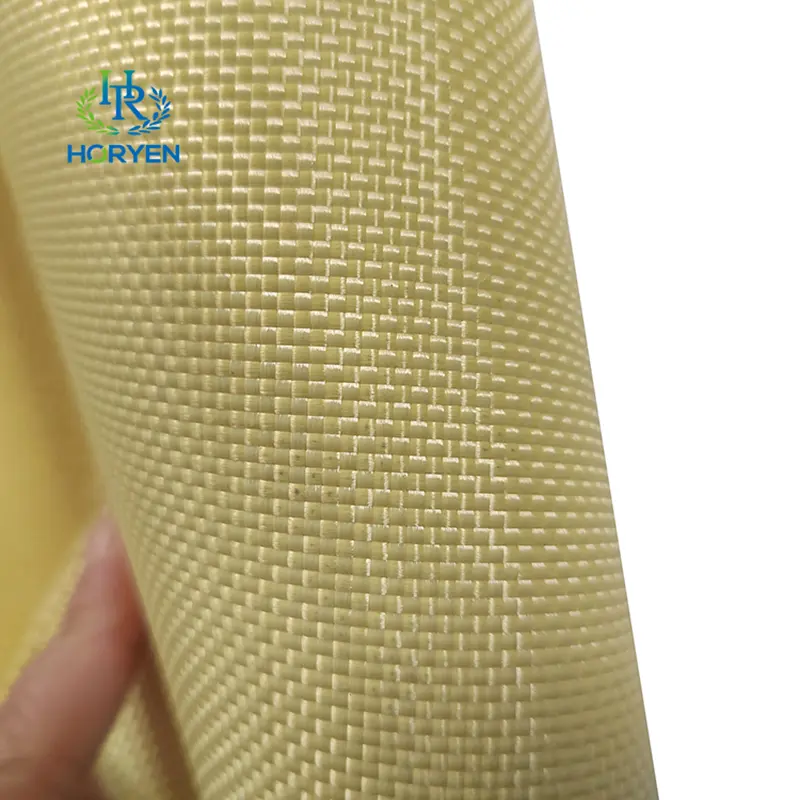

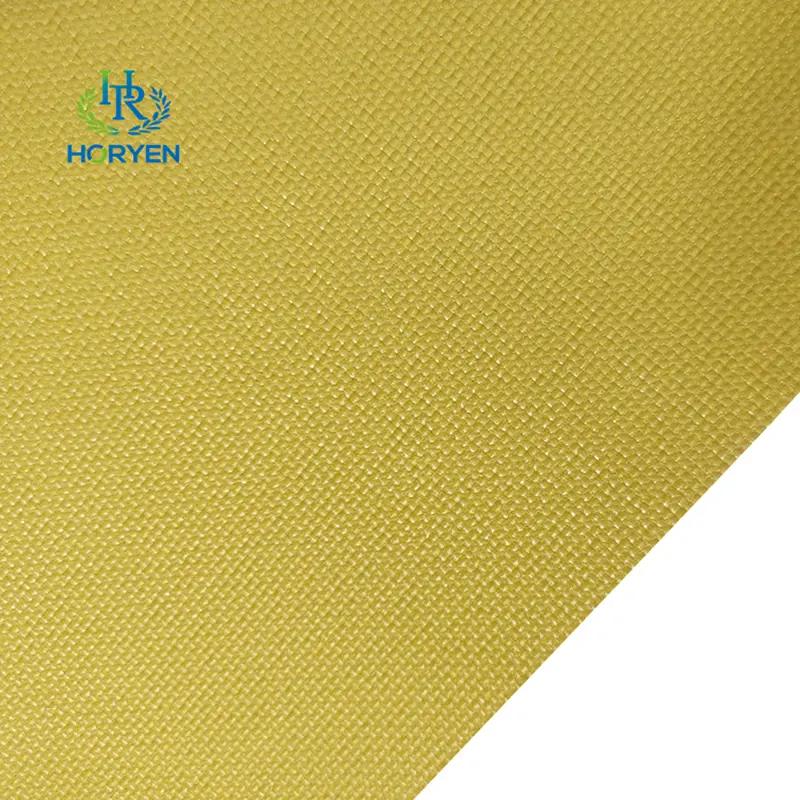

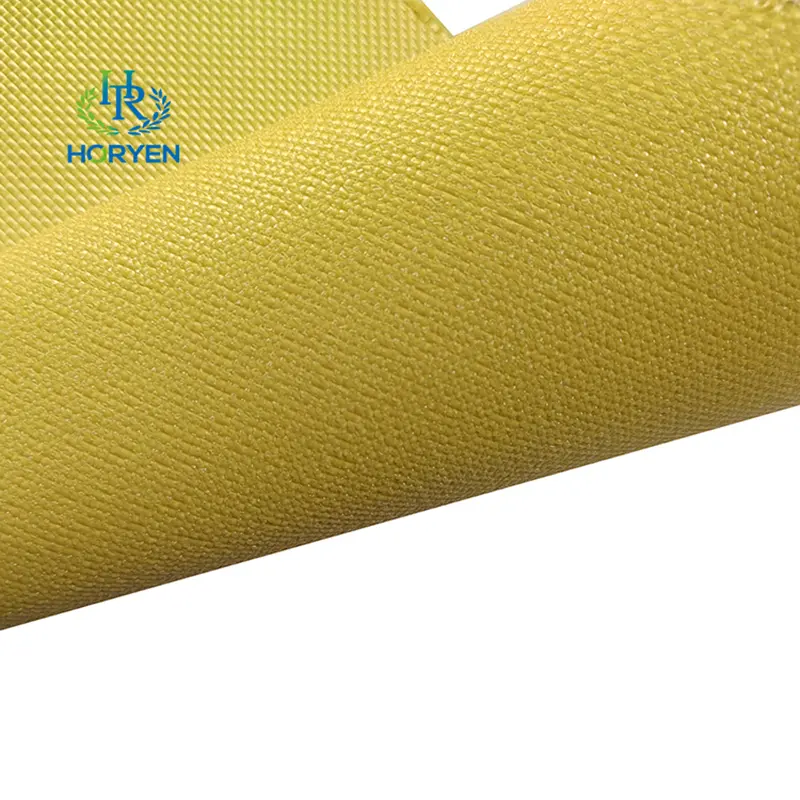

480g 460g Flame-resistant Prepreg Aramid Fiber Cloth

Aramid prepreg fiber fabric is a composite material made of aramid fibers, commonly used in the manufacturing process of high-performance composite materials. Prepreg fiber fabric refers to soaking aramid fibers in resin, and after appropriate treatment, achieving a certain resin content. This material can form a strong and lightweight structure after curing, with good mechanical properties.

The production process of aramid prepreg involves mixing aramid fibers with resin in a certain proportion, and then controlling the temperature and humidity to fully penetrate the resin into the fibers. When in use, prepreg aramid fiber cloth can be cut into specific shapes as needed, and then cured by heating or pressure to form the final composite material product.

Overall, aramid prepreg fiber cloth is a material with excellent mechanical and heat resistance properties, widely used in high demand applications such as aerospace, automotive, and sports equipment.

  • Min.Order: 10 square meters
  • Materia: Aramid fiber
  • Payment Type: T/T,Paypal,Credit card, L/C,Western Union
  • Transportation: Ocean, Land, Air, Express
  • Port: Shanghai, Guangdong, Qingdao

Product Feature


1. Excellent strength and rigidity: Aramid fibers have extremely high tensile strength, making prepreg fiber fabrics perform well when subjected to external forces.

2. High temperature resistance: It has excellent high temperature resistance and can maintain stable performance in high temperature environments, suitable for applications under high temperature conditions.

3. Low density: Compared to other metal materials, aramid prepreg fiber fabric has a lower density, which helps to reduce product weight.

4. Excellent impact resistance: Aramid fibers have good energy absorption ability and can effectively resist damage to materials caused by impact.

5. Corrosion resistance: It has good resistance to various chemicals, especially in humid and corrosive environments.


Product Parameter


Name

Prepreg aramid fiber fabric

Material

aramid fiber

Width

100cm or customized

Weave/warp

Twill or Plain

FAW

460gsm or 480gsm

Color

Yellow


Application Field


● Aerospace: used in the manufacturing of aircraft structural components, satellites, and rockets to reduce weight and increase strength.

● Automotive industry: Used for strengthening the body, chassis, and safety components of high-performance vehicles to enhance their safety and performance.

● Sports equipment: Used for high-performance sports equipment such as bicycle frames, skis, etc., to increase the durability and performance of the product.

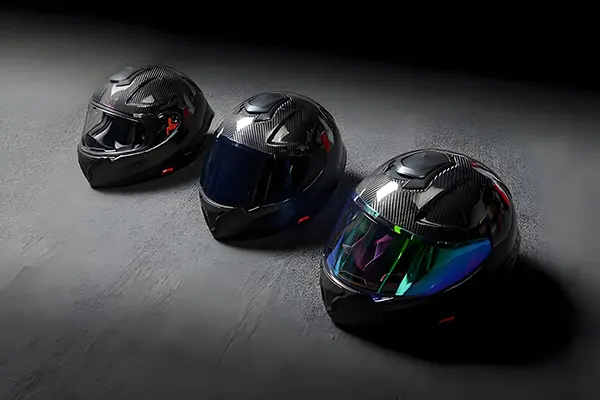

● Protective equipment: Used in personal protective equipment such as ballistic vests and helmets, providing excellent protective performance.

● Electronic products: structural components used in certain high-end electronic devices to enhance heat and impact resistance.


Application Field
Application Field 2
Application Field 3

Application Field 4
Application Field 5
Application Field 6

Application Field 7
Application Field 8
Application Field 9

Why Choose Us?


why choose us

Buyer Review


buyers review

Our Factory



company1
Our Factory

Our Factory 1
Our Factory 2
Our Factory 3
Our Factory 4

Packing & Transportation


packing

FAQ




Product Parameter


Code    No. Style Width Density(10m/m) Thickness  Weight Length Re-mark
m/m Warp Fill m/m  g/m² m
FZ-af-6001 Plain 1000  13  13  0.08    60  100  200d
FZ-af-6002 Plain 1000  20  20  0.12    90  100  200d
FZ-af-6003 Plain 1000  13  13  0.16    120  100  400d
FZ-af-6004 Plain 1000  11  11  0.16    120  100  500d
FZ-af-6005 Plain 1000  0.20    154  100  1000d
FZ-af-6006 Plain 1000  0.22    178  100  1000d
FZ-af-6007 Plain 1000  0.24    200  100  1000d
FZ-af-6008 Plain 1000  5.5  5.5  0.23    185  100  1000d
FZ-af-6009 Plain 1000  0.24    200  100  1500d
FZ-af-6010 Plain 1000  0.26    235  100  1500d
FZ-af-6011 Plain 1000  8.8  0.34    300  100  1500d
FZ-af-6012 Plain 1000  4.5  4.5  0.35    305  100  3000d
FZ-af-6013 Plain 1000  5.8  0.50    400  50  3000d
FZ-af-6014 Twill 1000  11.5  11.5  0.51    410  50  1500d
FZ-af-6015 Twill 1000  5.8  0.50    400  50  3000d
FZ-af-6016 Plain 1000  6.5  6.5  0.26    240  100  1500d
FZ-af-6017 UD 500  5.8  0.13    200  100  3000d
FZ-af-6018 UD 500  0.19    280  100  3000d
FZ-af-6019 UD 500  0.28    415  50  6000d
