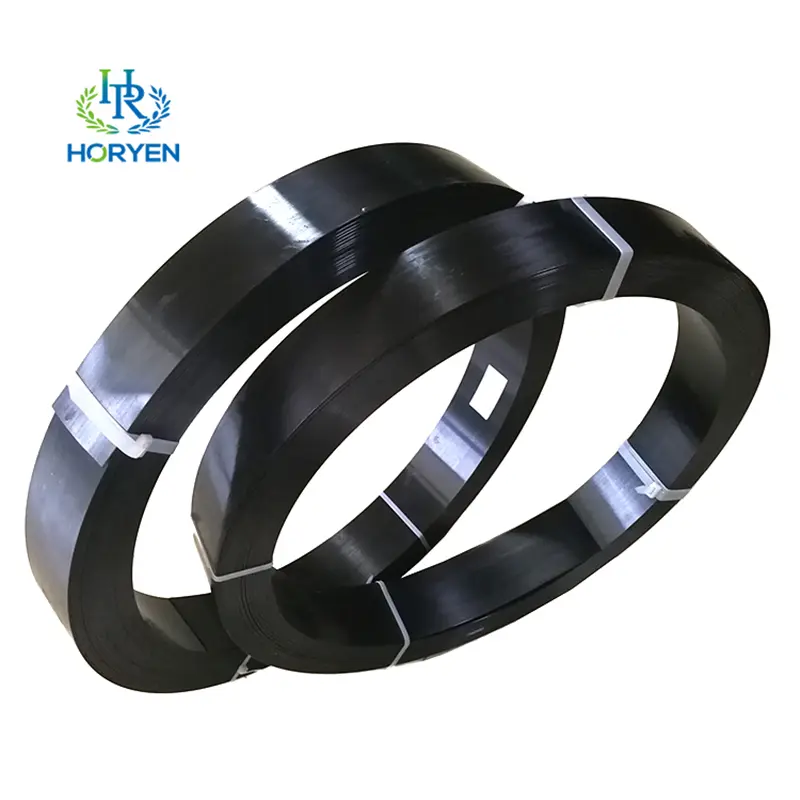

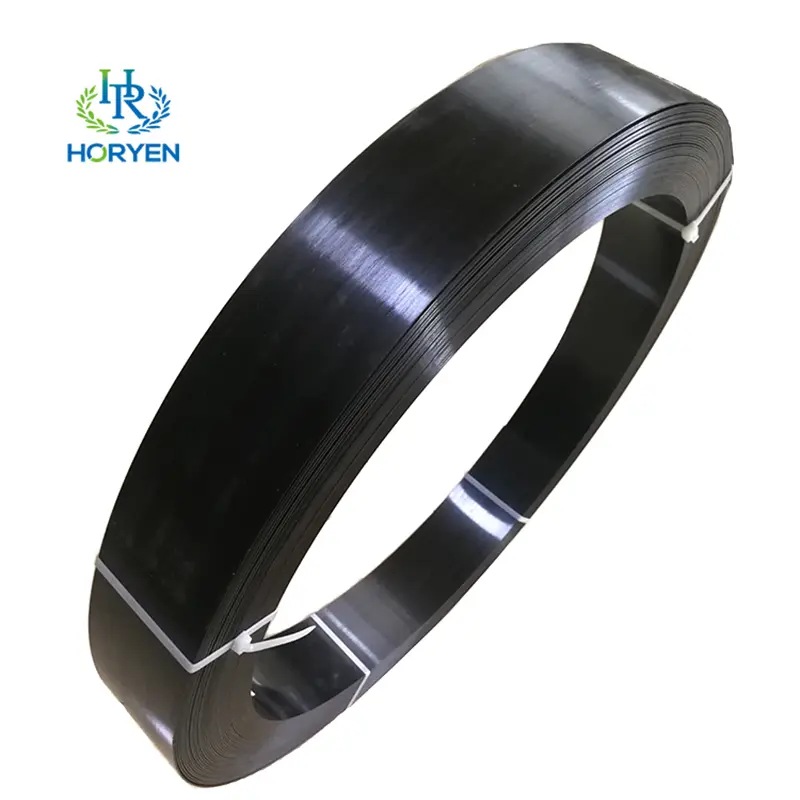

High Quality UD Carbon Fiber Strips For Bridge Construction

Carbon fiber UD strip is a composite material mainly made of high-strength carbon fiber, usually produced through hot pressing or cold pressing processes. It is composed of unidirectional parallel arranged carbon fiber layers, providing excellent mechanical properties for the material. In the production process of carbon fiber UD strip, carbon fibers are arranged in a single direction to ensure their strength and stiffness in that direction.

This material requires strict control over its thickness, density, and fiber arrangement during the production process to ensure compliance with customer quality requirements and technical specifications. Overall, carbon fiber UD strip is a high-performance composite material widely used in research and development in various industrial and scientific fields.

Min.Order: 100 meters
Color: Black
Working temperature: Max 150 degree
Payment Type: T/T,Paypal,Credit card,L/C,Western Union
Transportation: Ocean,Land,Air,Express
Port: Shanghai,Guangdong,Qingdao

product details

Product Feature

Corrosion resistance: Compared to metal materials, carbon fiber materials are less susceptible to chemical corrosion and have better corrosion resistance.

Easy to form: Ud carbon fiber strip can be manufactured into various profiles through different production processes (such as molding, extrusion, etc.), with strong flexibility.

Excellent fatigue performance: Under repeated stress, UD carbon fiber strip exhibits excellent fatigue performance and a longer lifespan.

Product Information
Product Type	Pultrusion carbon fiber plate
Material	Carbon fiber yarn and epoxy resin
Thickness	1.0mm,1.2mm,1.4mm,2.0mm,3.0mm
Width	50mm,100mm,200mm...
Application	Building repair,construction,bridge reinforcement
Tensile strength	2000Mpa or 2400Mpa
Modulus	140Gpa or 160Gpa

Construction Process

Construction process

More Choice

Application Field

The application of UD carbon fiber strip in buildings is mainly reflected in the fields of structural reinforcement and repair, with significant advantages and a wide range of application scenarios.

● Structural reinforcement: UD carbon fiber strip can significantly improve the bearing ability of beams, slabs, and columns, especially in application scenarios where structural loads mainly follow one direction. It can effectively improve the bending and shear resistance of reinforced concrete structures.

● Seismic retrofitting: In earthquake prone areas, UD carbon fiber strips can significantly improve the seismic resistance of structures and reduce damage to buildings caused by earthquakes.

● Crack control and repair: This material helps to reinforce damaged or weakened concrete structures, control crack propagation, and repair damaged areas.

● Lightweight design: UD carbon fiber strip is lightweight and can provide high strength without significantly increasing structural weight, making it suitable for scenarios that require weight reduction to lower transportation and installation costs.
