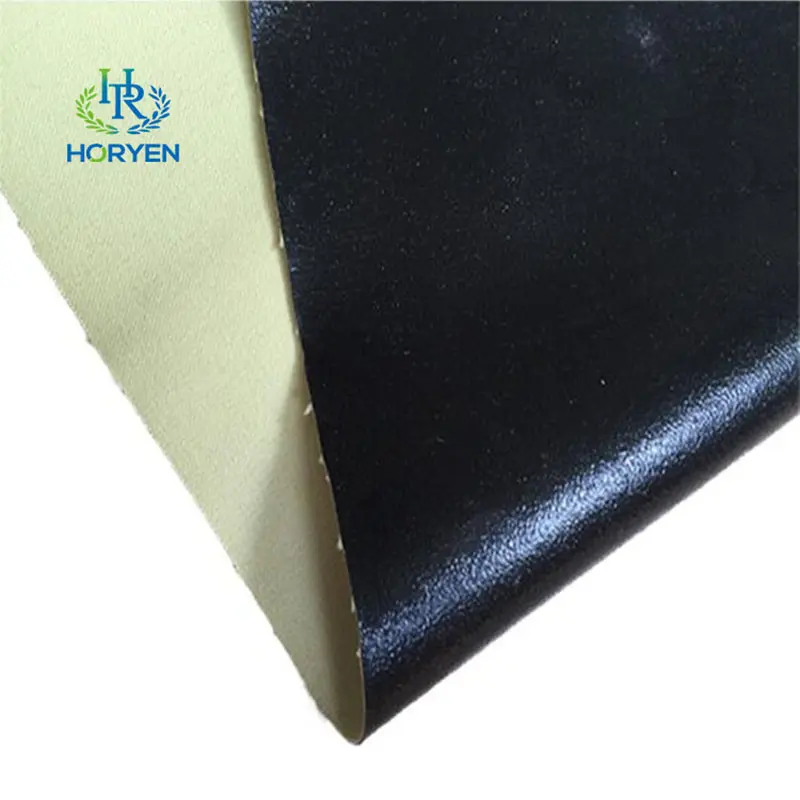

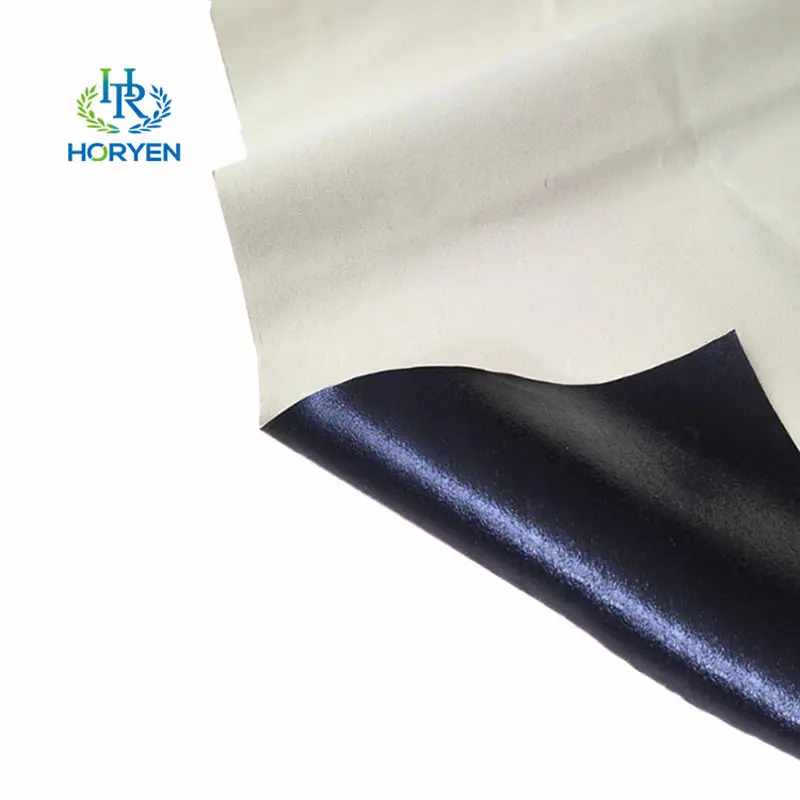

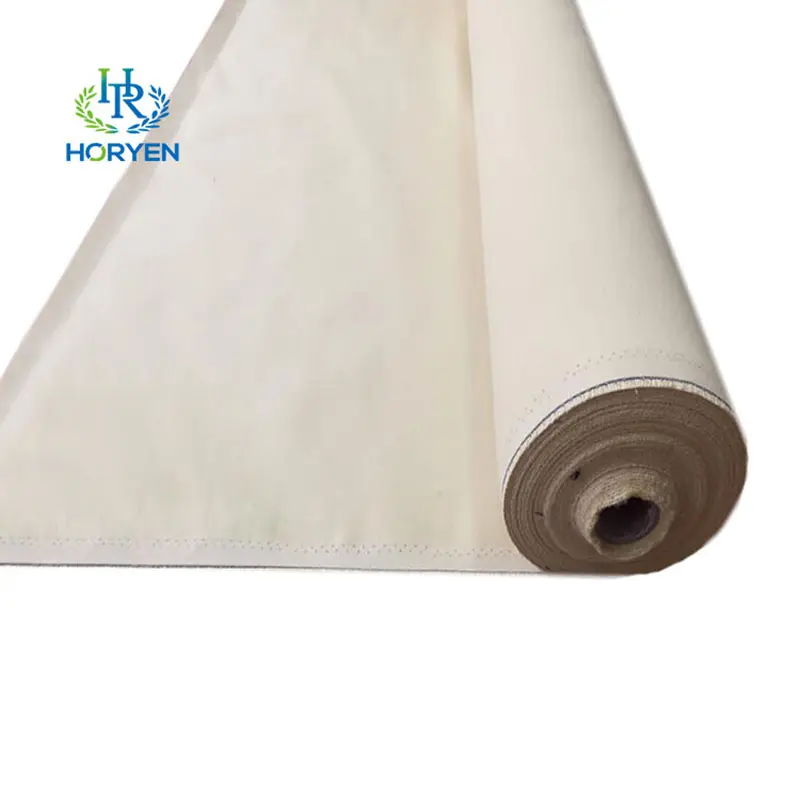

High Temperature Resistant Chemical Resistant Coated Silicone Aramid Fabric
Product Feature
1. High temperature resistance: High temperature coated aramid fabric can maintain its physical and chemical properties in high temperature environments, typically with a temperature resistance range of over 200 ° C.
2. High strength: Aramid fibers have excellent mechanical strength, which makes the coated fabric perform well in terms of tensile strength and tear strength.
3. Chemical resistance: High temperature resistant coatings can effectively resist the erosion of certain chemicals, increasing the service life of materials.
4. Insulation performance: Aramid cloth has good electrical insulation performance and is suitable for protecting electrical and electronic equipment.
5. Lightweight: Compared to other heat-resistant materials, aramid fabric has a lower density, making it easier to process and apply.
6.Wear resistance: The coating increases its surface wear resistance and can withstand certain mechanical wear.
Product Parameter
|
Name |
Para aramid fiber fabric |
|
Material |
100% aramid fiber |
|
Weave |
knitted |
|
Faw |
280gsm |
|
Width |
1.5m |
|
Color |
Yellow |
Application Field
Why Choose Us?
Buyer Review
Our Factory
Packing & Transportation
FAQ
Product Parameter
| Code No. | Style | Width | Density(10m/m) | Thickness | Weight | Length | Re-mark | |
| m/m | Warp | Fill | m/m | g/m² | m | |||
| FZ-af-6001 | Plain | 1000 | 13 | 13 | 0.08 | 60 | 100 | 200d |
| FZ-af-6002 | Plain | 1000 | 20 | 20 | 0.12 | 90 | 100 | 200d |
| FZ-af-6003 | Plain | 1000 | 13 | 13 | 0.16 | 120 | 100 | 400d |
| FZ-af-6004 | Plain | 1000 | 11 | 11 | 0.16 | 120 | 100 | 500d |
| FZ-af-6005 | Plain | 1000 | 7 | 7 | 0.20 | 154 | 100 | 1000d |
| FZ-af-6006 | Plain | 1000 | 8 | 8 | 0.22 | 178 | 100 | 1000d |
| FZ-af-6007 | Plain | 1000 | 9 | 9 | 0.24 | 200 | 100 | 1000d |
| FZ-af-6008 | Plain | 1000 | 5.5 | 5.5 | 0.23 | 185 | 100 | 1000d |
| FZ-af-6009 | Plain | 1000 | 6 | 6 | 0.24 | 200 | 100 | 1500d |
| FZ-af-6010 | Plain | 1000 | 7 | 7 | 0.26 | 235 | 100 | 1500d |
| FZ-af-6011 | Plain | 1000 | 9 | 8.8 | 0.34 | 300 | 100 | 1500d |
| FZ-af-6012 | Plain | 1000 | 4.5 | 4.5 | 0.35 | 305 | 100 | 3000d |
| FZ-af-6013 | Plain | 1000 | 6 | 5.8 | 0.50 | 400 | 50 | 3000d |
| FZ-af-6014 | Twill | 1000 | 11.5 | 11.5 | 0.51 | 410 | 50 | 1500d |
| FZ-af-6015 | Twill | 1000 | 6 | 5.8 | 0.50 | 400 | 50 | 3000d |
| FZ-af-6016 | Plain | 1000 | 6.5 | 6.5 | 0.26 | 240 | 100 | 1500d |
| FZ-af-6017 | UD | 500 | 5.8 | 0.13 | 200 | 100 | 3000d | |
| FZ-af-6018 | UD | 500 | 8 | 0.19 | 280 | 100 | 3000d | |
| FZ-af-6019 | UD | 500 | 6 | 0.28 | 415 | 50 | 6000d | |
