High Tensile Fireproof Basalt Fiber Fabric Concrete Reinforcement

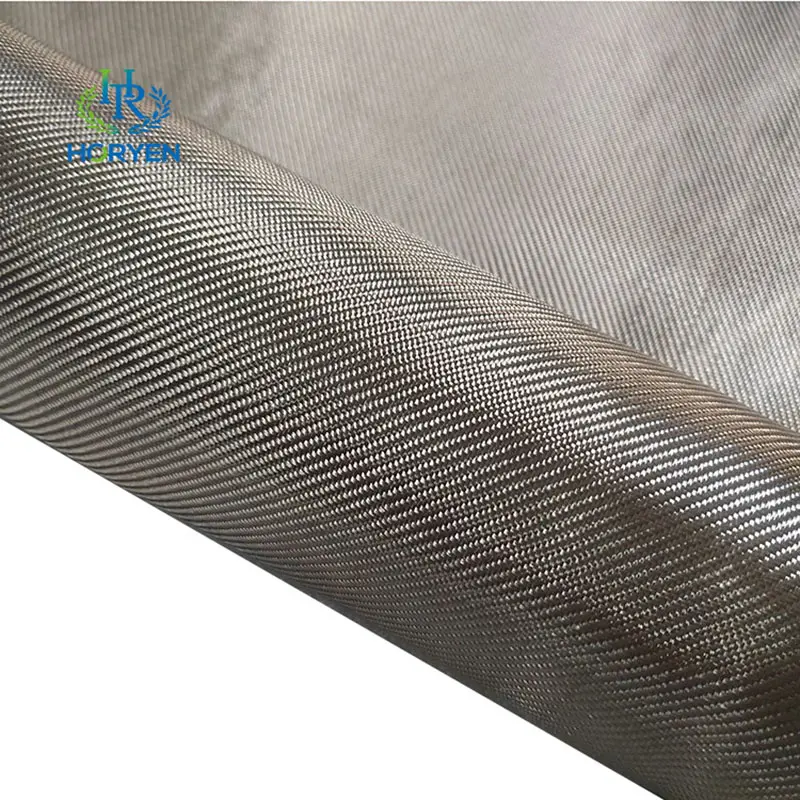

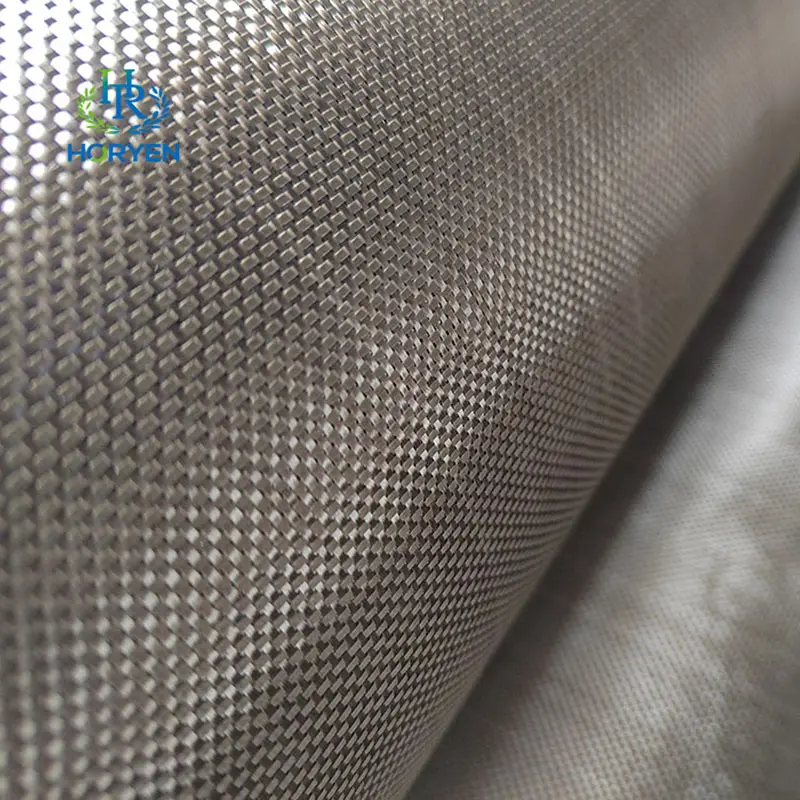

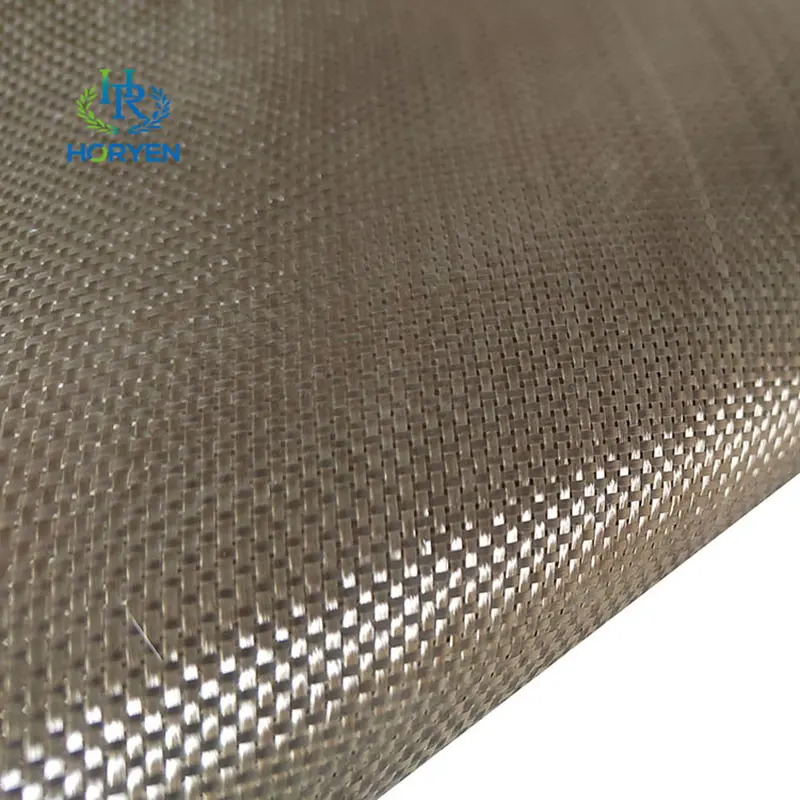

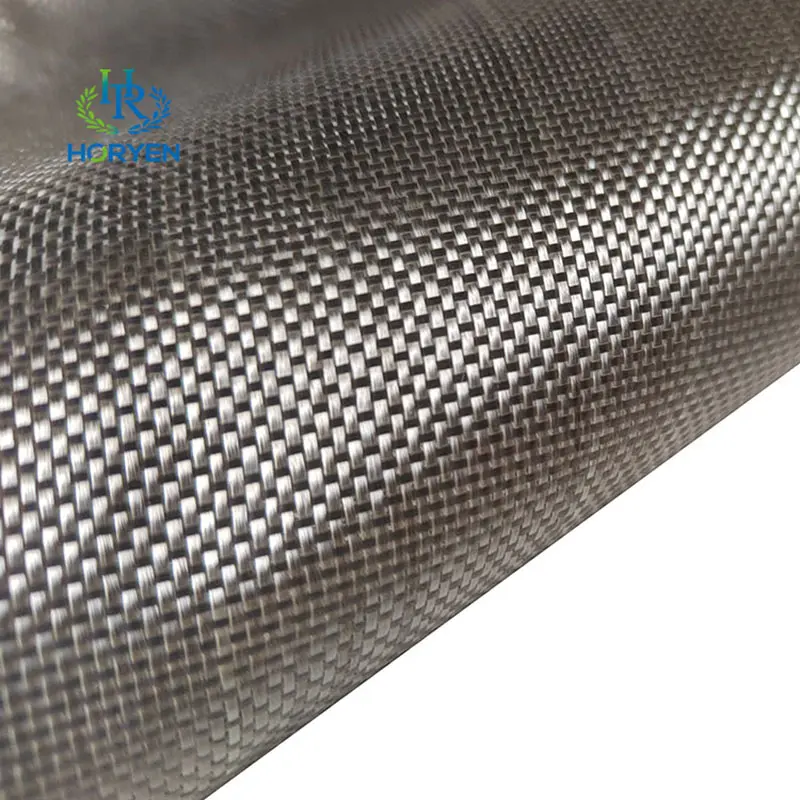

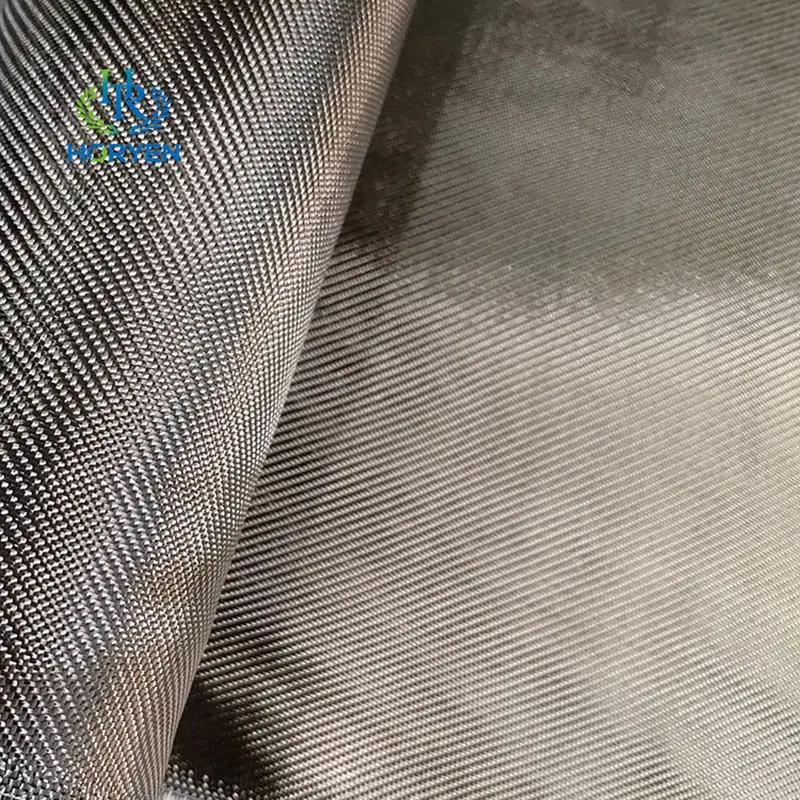

Basalt fiber cloth is an inorganic high-performance fabric made from continuous fibers formed by high-temperature melting and drawing of natural basalt ore. It is produced through textile technology. Its core characteristics stem from the unique volcanic rock nature and molecular structure of basalt fibers, manifested as a deep integration of extreme environmental adaptability, excellent mechanical properties, multifunctional chemical stability, and ecological sustainability.

Min.Order: 100 square meters
Material: Basalt fiber
Surface Treatment: Smooth
Payment Type: T/T,Paypal,Credit card, L/C,Western Union
Transportation: Ocean,Land,Air,Express
Port: Shanghai,Guangdong,Qingdao

product details

Product Features

1. Environmental performance: Basalt fiber cloth is a new type of material that is environmentally friendly, low-carbon, and high-performance. Its raw material is basalt ore, which has considerable reserves on both Earth and the Moon. During the production process, no harmful substances are emitted, there is no pollution to the atmospheres, and the product has a long lifespan and environmental cleanliness.

2. Physical properties: Basalt fiber cloth has excellent wear resistance, corrosion resistance, UV resistance, and high strength. Its high density and hardness endow it with excellent wear resistance and tensile strengthening properties. In addition, basalt fiber cloth is stable in the temperature range of -269~700 ℃ (softening point up to 960 ℃, high temperature resistance), and exhibits acid and alkali resistance, UV resistance, low moisture absorption, and good environmental resistance.

Product Parameter

model number	tissue	width ( m/m)	density(10m/m) (warp/weft)		thickness (m/m)	weight (gsm)	length (m)
FZ-9001	plain	500-1500	15	15	0.046	100	100
FZ-9002	plain	500-1500	11	11	0.066	145	100
FZ-9003	plain	500-1500	10	10	0.092	200	100
FZ-9004	plain	500-1500	5.6	5.6	0.138	300	100
FZ-9005	plain	500-1500	5	5	0.138	300	100
FZ-9006	twill	500-1500	5	5	0.138	300	100
FZ-9007	twill	500-1500	7	7	0.257	560	50/100
FZ-9008	UD	100-1000	5		0.074	200	100
FZ-9009	UD	100-1000	3.7		0.111	300	100
FZ-9010	UD	100-1000	3.7		0.167	450	100

Application Field

Application areas: basalt fiber cloth has a wide range of applications in multiple fields. In the aerospace field, basalt fiber cloth can be used as a composite material in the manufacturing of aircraft, rockets and other products, reducing weight and improving performance. In the military field, basalt fiber cloth can be used to make equipment such as bulletproof vests and stab proof vests. In the field of architecture, basalt fiber cloth can be used as a reinforcing material to improve the seismic performance of buildings. In addition, basalt fiber cloth can also be used as a filtering material in the field of environmental protection, purifying air and water sources.
