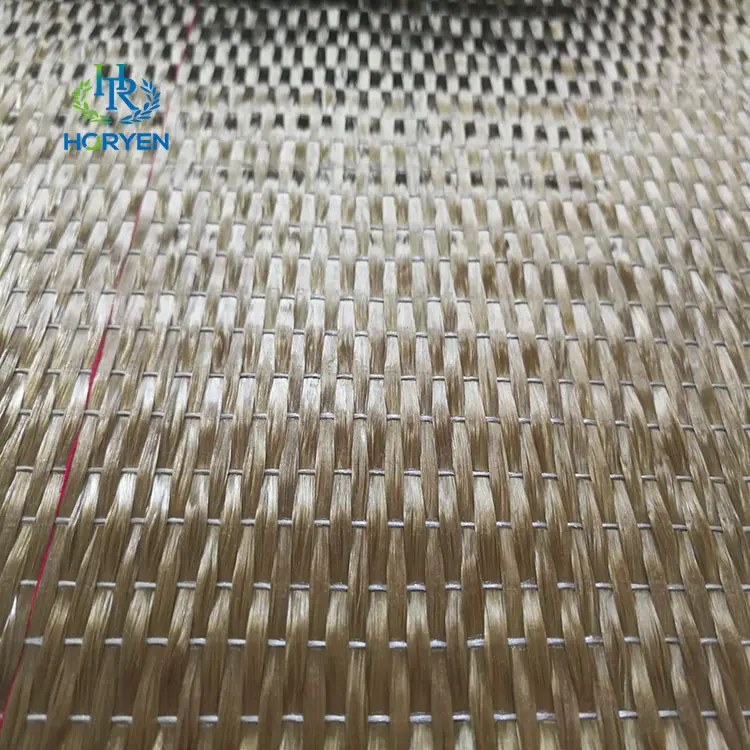

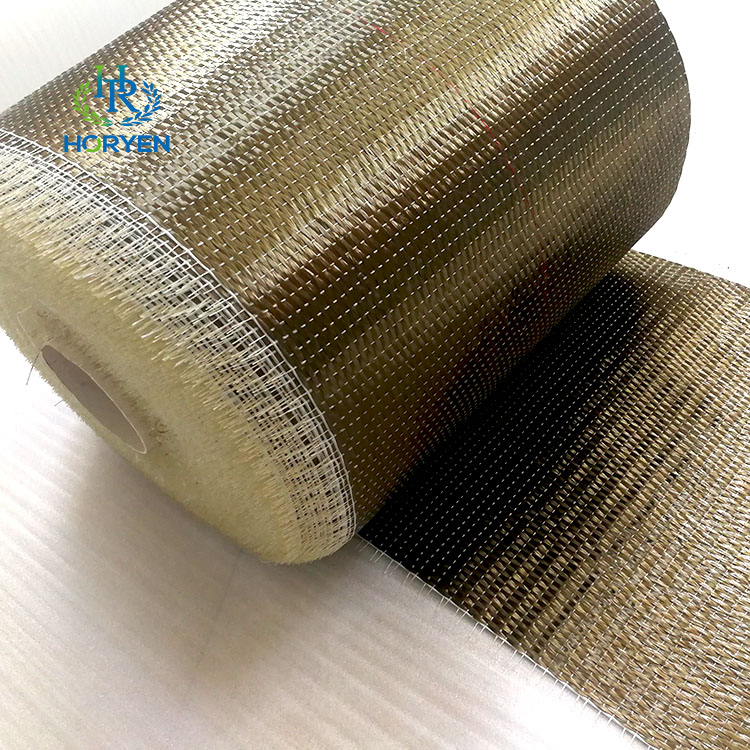

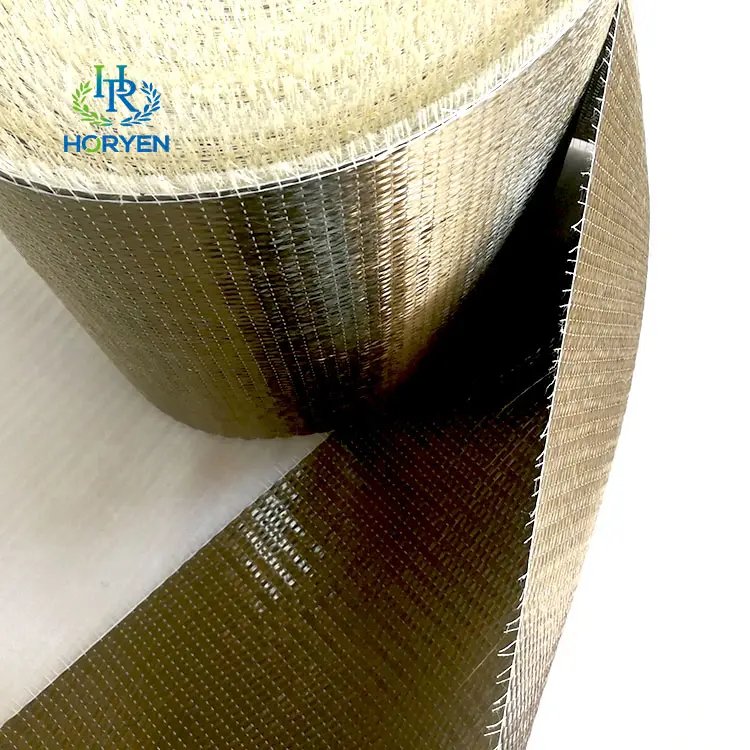

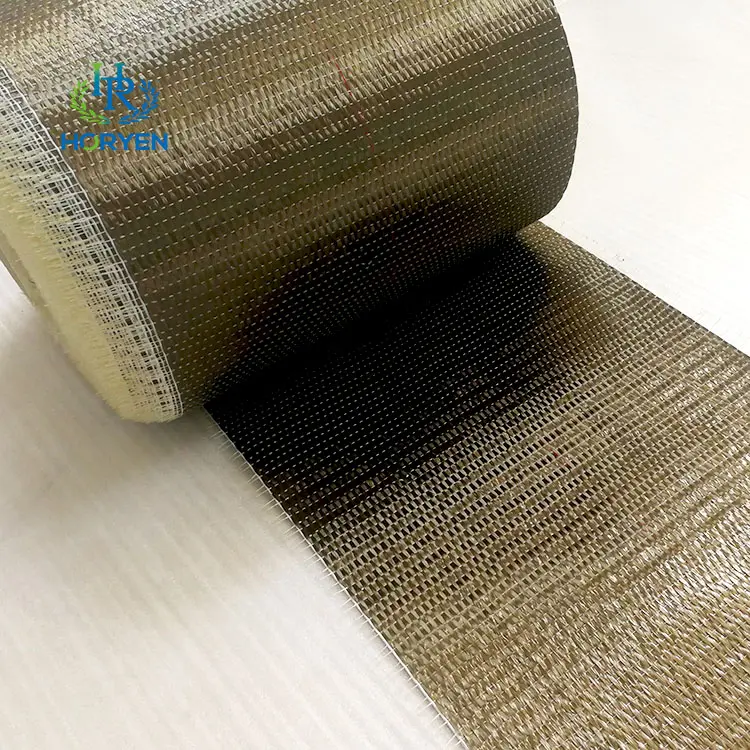

High Tensile UD Basalt Fiber Fabric for Building Reinforcement

Basalt fiber UD fabric is an engineering material woven from high-performance basalt fibers. Uniformly apply a wetting agent suitable for phenolic and epoxy resins on the monofilament, which is suitable for the performance requirements of polyester, epoxy, phenolic, nylon and other resins. And coupling agents that match various resins are added to the impregnating agent to fully utilize the reinforcing effect of basalt fiber unidirectional fabric. Basalt fiber belongs to the typical silicate fiber series and has a thermal expansion coefficient similar to cement. It has good surface bonding properties with resins. Therefore, basalt fiber UD cloth is used for building, bridge reinforcement and repair. In some aspects,UD basalt fiber cloth has more outstanding comprehensive performance and cost-effectiveness than carbon fiber unidirectional cloth.

Min.Order: 100 square meters
Material: Basalt fiber
Surface Treatment: Smooth
Payment Type: T/T,Paypal,Credit card, L/C,Western Union
Transportation: Ocean,Land,Air,Express
Port: Shanghai,Guangdong,Qingdao

product details

Product Features

1. High strength and high modulus fiber

2. Excellent shock resistance - good for ballistic applications

3. Low cost alternative and can replace carbon fiber in some applications including filament winding

4. High temperature resistance and good light resistance

5. Good fatigue and corrosion resistance properties

6. Easy to handle and process

7. Environment friendly

8. Can be recycled

9. Exhibit no health and safety risks

10. Compatible with many resins - unsaturated polyester, vinylester, epoxy, phenolic, etc

11. Better chemical resistance than e-glass

Product Parameter

model number	tissue	width ( m/m)	density(10m/m) (warp/weft)		thickness (m/m)	weight (gsm)	length (m)
FZ-9001	plain	500-1500	15	15	0.046	100	100
FZ-9002	plain	500-1500	11	11	0.066	145	100
FZ-9003	plain	500-1500	10	10	0.092	200	100
FZ-9004	plain	500-1500	5.6	5.6	0.138	300	100
FZ-9005	plain	500-1500	5	5	0.138	300	100
FZ-9006	twill	500-1500	5	5	0.138	300	100
FZ-9007	twill	500-1500	7	7	0.257	560	50/100
FZ-9008	UD	100-1000	5		0.074	200	100
FZ-9009	UD	100-1000	3.7		0.111	300	100
FZ-9010	UD	100-1000	3.7		0.167	450	100

Application Field

● Construction industry: UD basalt fiber cloth is mainly used for wall insulation, heat insulation, and reinforcement engineering. Its excellent high-temperature resistance enables it to maintain stable physical properties in high-temperature environments, thereby improving the service life and safety reliability of buildings.

● Road construction: UD basalt fiber cloth can be used to manufacture high-strength composite material pavement layers or bridge deck pavement structures. It can improve the bearing capacity and durability of the road surface, effectively extending the service life and maintenance cycle of the road.

●Bridge and tunnel construction: Due to the high strength, toughness, and corrosion resistance of UD basalt fiber cloth, it has also been widely used in the construction process of bridges and tunnels. It can be used as prestressed reinforcement to improve the load-bearing capacity of the structure and reduce maintenance costs.
