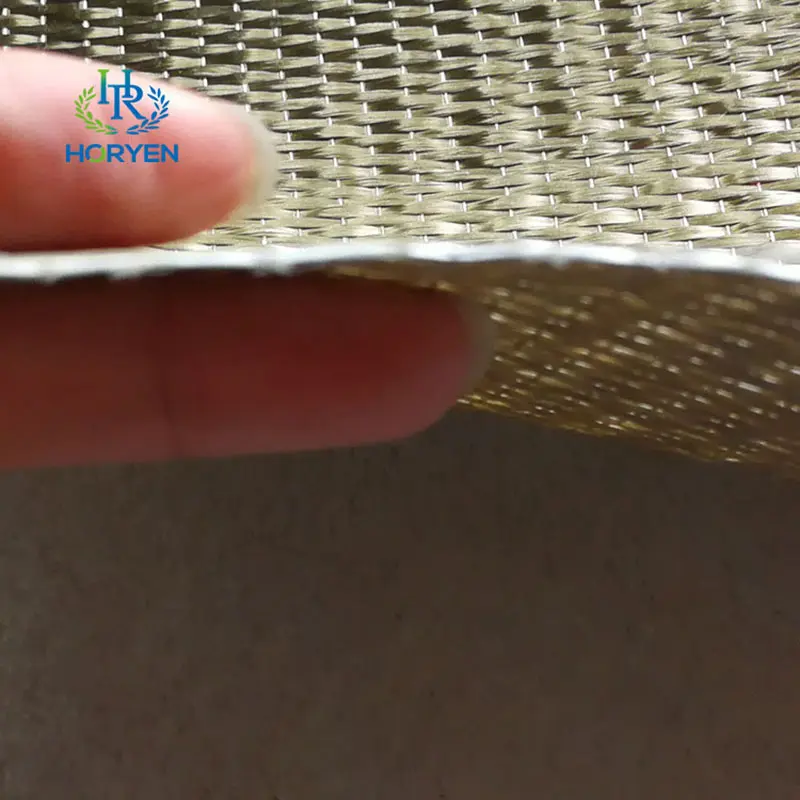

Reinforced Concrete High Quality UD Basalt Fiber Cloth

UD basalt fiber fabric is a composite material woven from basalt fibers, usually made by unidirectional weaving. The production process involves melting basalt ore at high temperatures and then drawing it into fibers, which are arranged in a unidirectional manner to form a unified structure in the fabric.

The main structural feature of this fabric is that the fibers are arranged in one direction, forming a high-strength and high stiffness material. This arrangement gives the material excellent mechanical properties in that direction, while its performance is relatively weak in other directions. Due to its unique physical and chemical properties, UD basalt fiber cloth is widely used in fields such as engineering, construction, and materials science.

Min.Order: 100 square meters
Material: Basalt fiber
Surface Treatment: Smooth
Payment Type: T/T,Paypal,Credit card, L/C,Western Union
Transportation: Ocean,Land,Air,Express
Port: Shanghai,Guangdong,Qingdao

product details

Product Features

1. High strength: Basalt fiber has excellent strength, comparable to steel, and is suitable for bearing heavy loads.

2. High temperature resistance: Basalt materials have superior high temperature resistance and can maintain stable physical properties in high temperature environments.

3. Corrosion resistance: Strong resistance to chemical corrosion, suitable for use in harsh environments.

4. Lightweight: Compared to traditional materials such as steel, UD basalt fiber fabric is lightweight, reducing the overall weight of the structure.

5. Good impact resistance: Its good toughness enables it to effectively absorb impact energy.

6. Recyclability: With increasing attention to environmentally friendly materials, basalt materials have good recyclability.

Product Parameter

model number	tissue	width ( m/m)	density(10m/m) (warp/weft)		thickness (m/m)	weight (gsm)	length (m)
FZ-9001	plain	500-1500	15	15	0.046	100	100
FZ-9002	plain	500-1500	11	11	0.066	145	100
FZ-9003	plain	500-1500	10	10	0.092	200	100
FZ-9004	plain	500-1500	5.6	5.6	0.138	300	100
FZ-9005	plain	500-1500	5	5	0.138	300	100
FZ-9006	twill	500-1500	5	5	0.138	300	100
FZ-9007	twill	500-1500	7	7	0.257	560	50/100
FZ-9008	UD	100-1000	5		0.074	200	100
FZ-9009	UD	100-1000	3.7		0.111	300	100
FZ-9010	UD	100-1000	3.7		0.167	450	100

Application Field

● Construction industry: UD basalt fiber cloth is mainly used for wall insulation, heat insulation, and reinforcement engineering. Its excellent high-temperature resistance enables it to maintain stable physical properties in high-temperature environments, thereby improving the service life and safety reliability of buildings.

● Road construction: UD basalt fiber cloth can be used to manufacture high-strength composite material pavement layers or bridge deck pavement structures. It can improve the bearing capacity and durability of the road surface, effectively extending the service life and maintenance cycle of the road.

●Bridge and tunnel construction: Due to the high strength, toughness, and corrosion resistance of UD basalt fiber cloth, it has also been widely used in the construction process of bridges and tunnels. It can be used as prestressed reinforcement to improve the load-bearing capacity of the structure and reduce maintenance costs.
