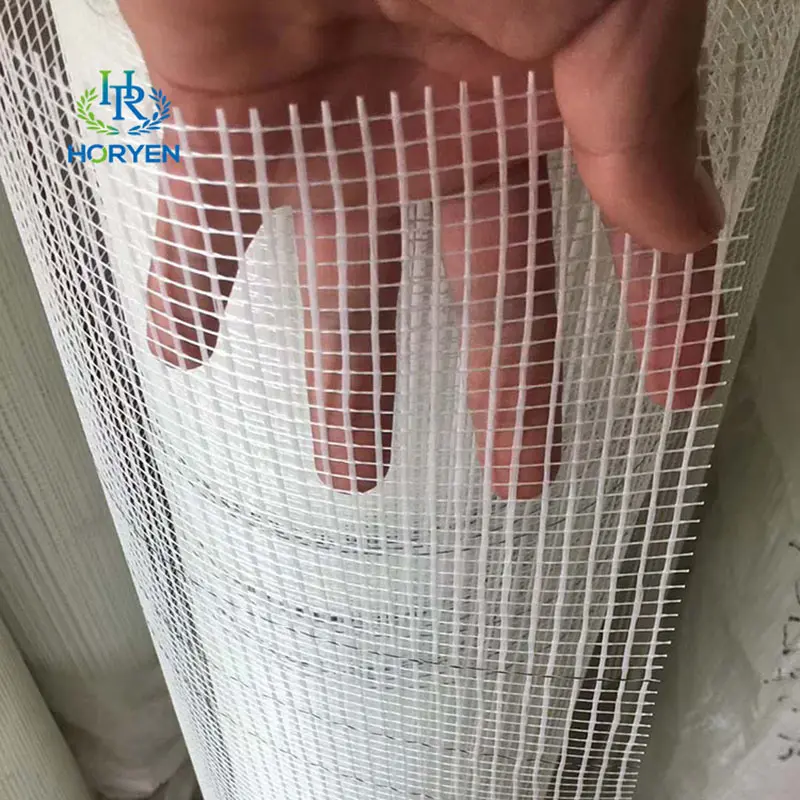

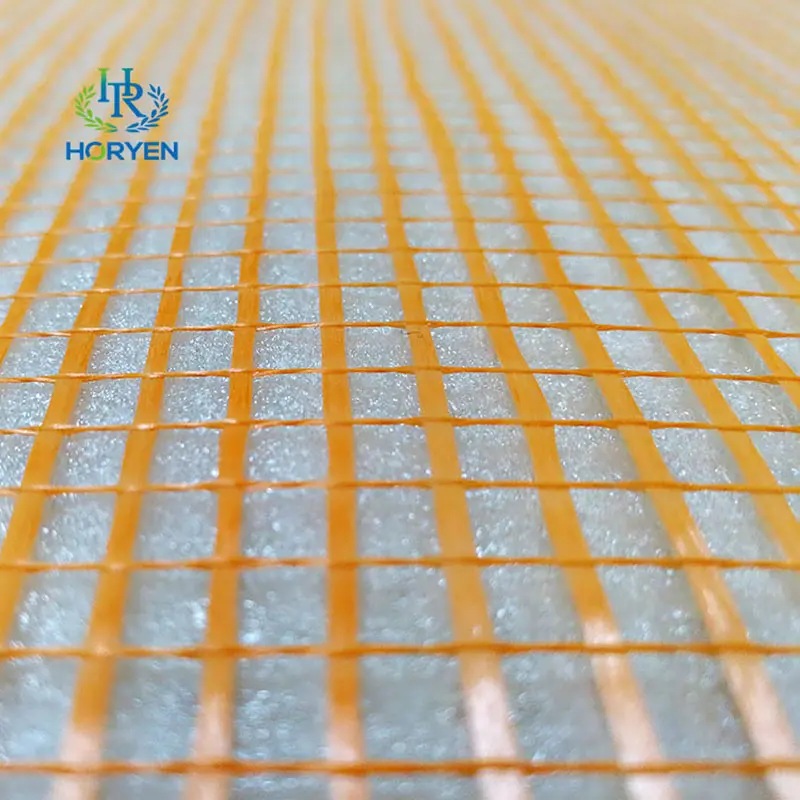

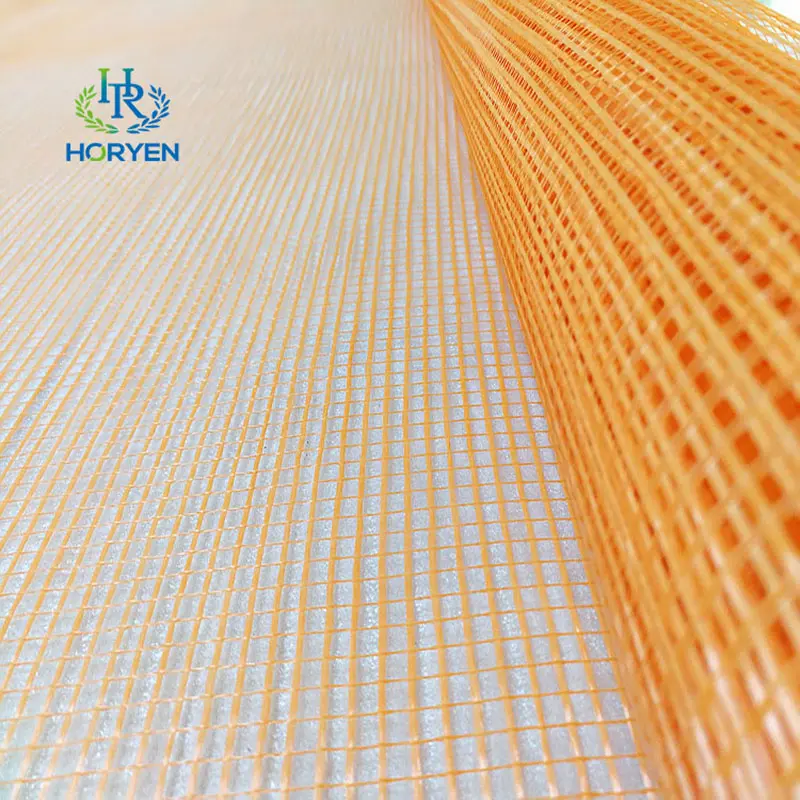

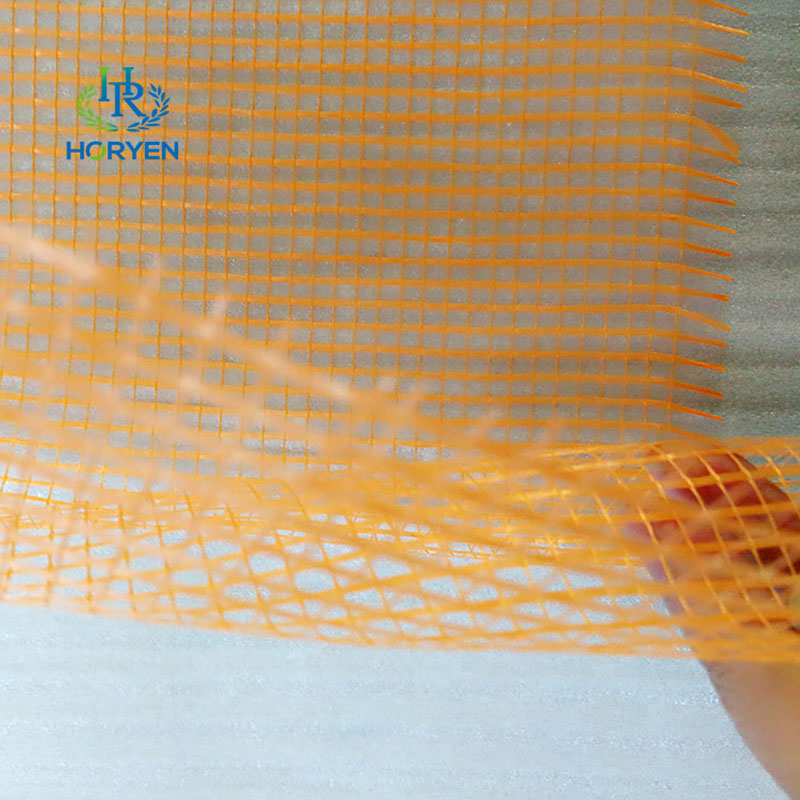

Wall Insulation 75gsm 5*5 Fiberglass Mesh Fabric

Glass fiber mesh is a mesh structure material made of glass fiber yarn through a specific weaving process. Its core component is exceedingly fine glass fibers (mainly composed of inorganic substances such as silicon dioxide, aluminum oxide, calcium oxide, etc.). These fibers are twisted into yarn and fixed in a specific mesh size (such as 4mm x 4mm, 5mm x 5mm, 10mm x 10mm, etc.) and weaving density with mutually perpendicular warp and weft yarns, forming a flat mesh fabric with stable geometric shapes. Its significant feature lies in inheriting the excellent physical and chemical properties of glass fiber itself.

  • Min.Order: 500 square meters
  • Weave Type: Plain Woven
  • Yarn Type: E-glass
  • Payment Type: T/T,Paypal,Credit card, L/C,Western Union
  • Transportation: Ocean, Land, Air, Express
  • Port: Shanghai, Guangdong, Qingdao

Product Feature


1. Exceedingly high tensile strength (far senior to equal weight steel wire), which can effectively disperse and bear external forces, significantly improving the overall mechanical properties of its composite system, especially in terms of cracking resistance and impact resistance.

2. Excellent dimensional stability ensures long-term stability of the structure after construction by preventing shrinkage or expansion deformation in environments with temperature or humidity fluctuations.

3. Non combustible materials can effectively block the spread of flames and improve the fire safety level of buildings.


Product Parameter


Product

Fiberglass mesh

Mesh size

3*3mm,4*5mm,4*4mm etc

Color

Red,blue,yellow and so on

Width

100-2200mm

weight

60-300gsm

Weave Type

Plain weave

Package

PVC bag or customized

Standing temperature

300-500℃

Application

1.renovate building surface

2.fire prevention board

3.wall enhanced materials

4.granite, marble, mosaic special mesh

5.fireproof cloth


Application Field


Due to its superior comprehensive performance, glass fiber mesh is widely used in the field of construction engineering.
● It is mainly used for enhancing the plaster layer after pasting insulation boards (such as EPS, XPS, rock wool) in the external wall insulation system. It is embedded in the plaster mortar to form a key crack resistant protective layer, effectively suppressing surface cracking caused by temperature difference stress, shrinkage stress or external impact, and ensuring the integrity and durability of the insulation system.
● It is also commonly used for crack prevention and reinforcement of indoor wall and ceiling plastering projects, joint treatment of gypsum boards, as well as reinforcement substrates for ground self leveling, waterproofing membranes, and roof waterproofing systems.


application-1
application-2
application-3
application-4
